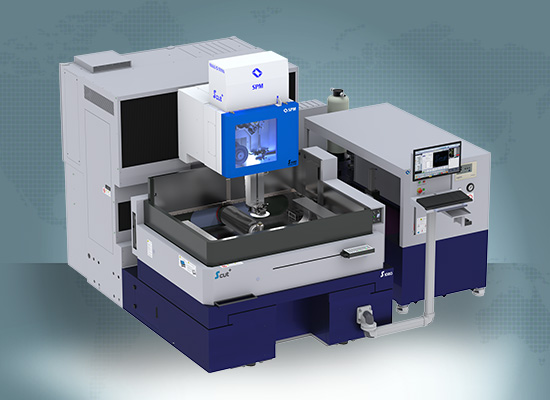

Introducing the CNC Wire Cut E.D.M Series produced by SPM.

Semi-Submerged Machining

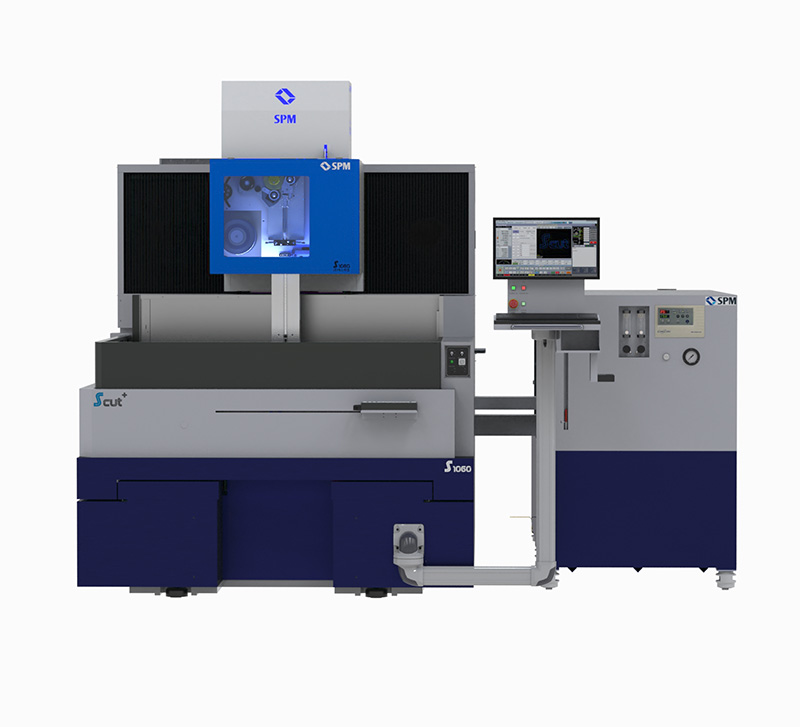

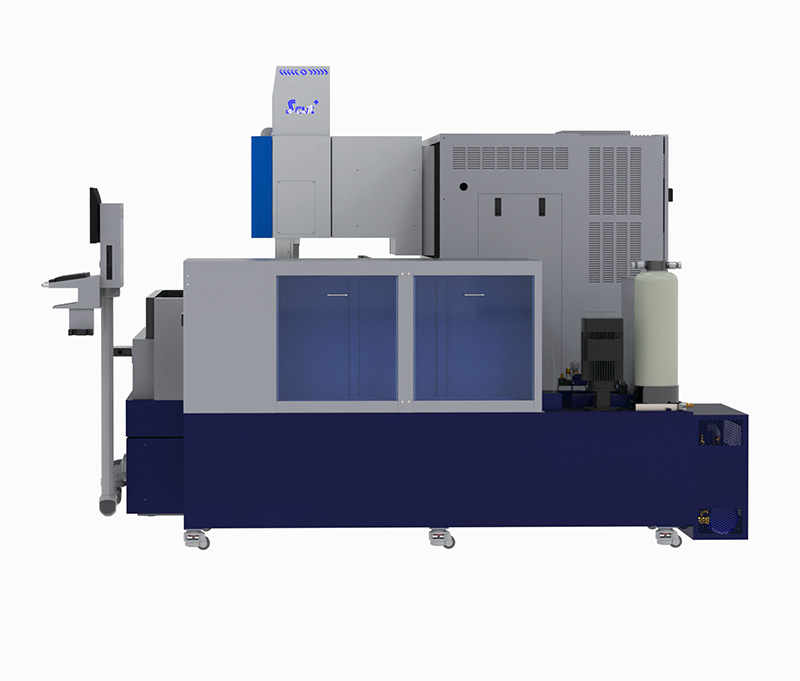

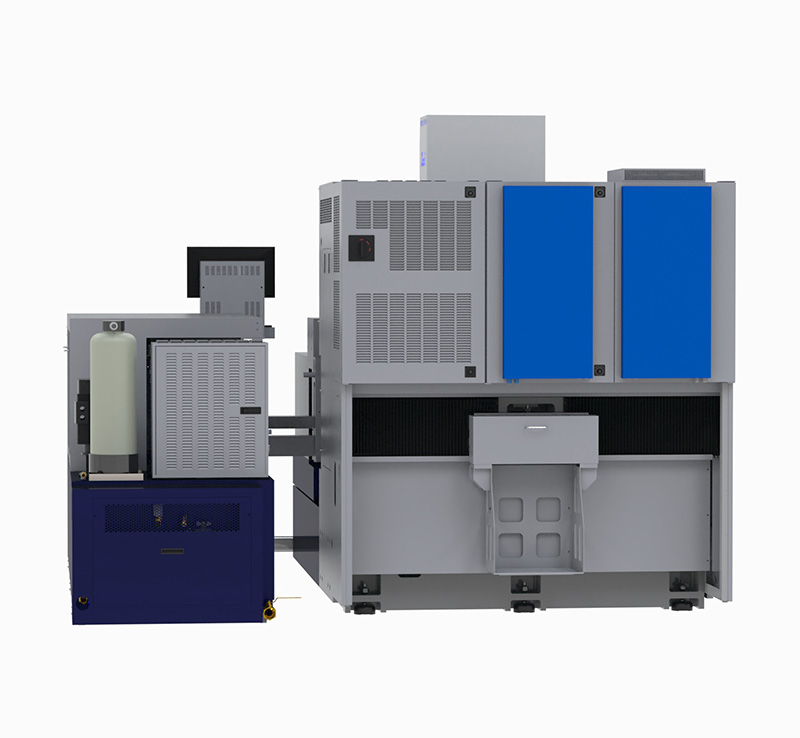

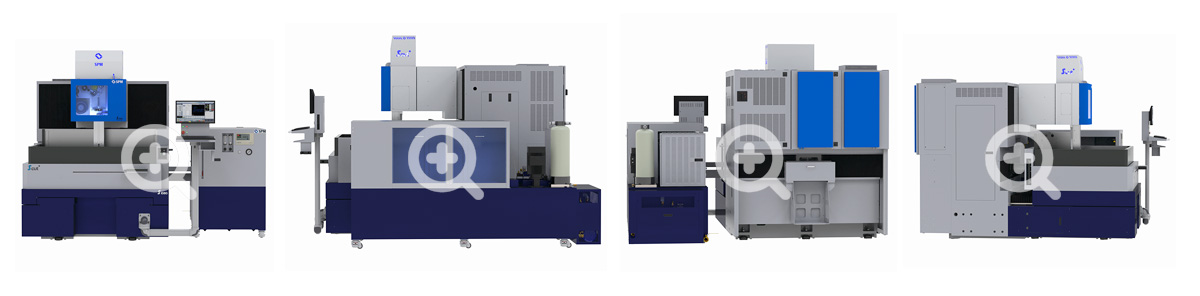

◎ S1060




RANGE OF MACHINING





CONTROL UNIT SPECIFICATION

Title Unit
X, Y, Z trave 1000 X 600 X 350 mm
l U, V travel 100 X 100 (± 50) mm
Work tank dimensions 1524 X 1139 mm
Maximum workpiece dimensions 1300 X 800 X 340 mm
Common workpiece dimensions F:1200 X 700 X 330 / S:1200 X 700 X 120 mm
Maximum workpiece weight 2100 kg

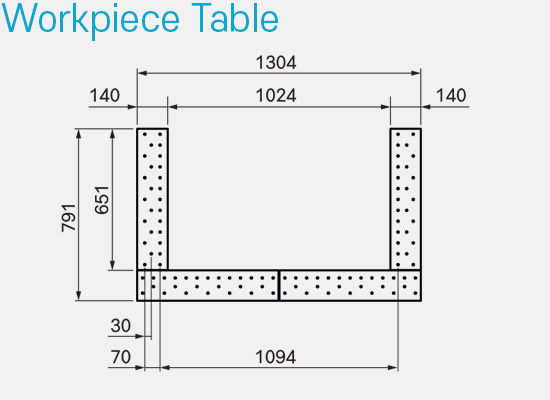

Table dimension 1304 X 791 mm
Table height (from floor) 980 mm
Title Unit
Maximum taper angle ±24/100mm Degrees/t
Table rapid feed speed 1300 mm
Wire diameter 0.15 ~ 0.3 mm
Wire feed speed 0 ~ 15 m/min
Wire tension 0.5 ~ 28 N

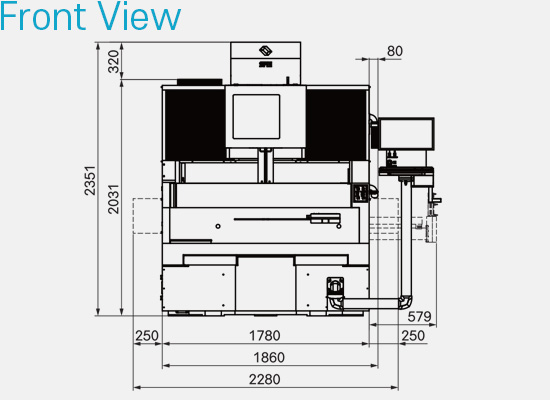

Machine dimension (WLH) 1860 X 3935 X 2031 mm
Machine unit weight 6100 kg

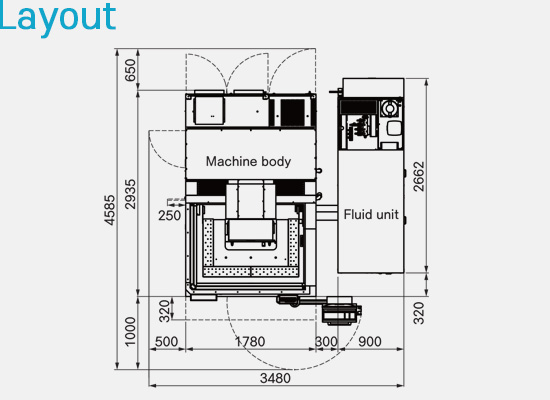

Standard layout 3480 X 4585 X 2351 mm
X,Y, Z Linear scale standard (U,V option) /Option : Outer mounted bobbin

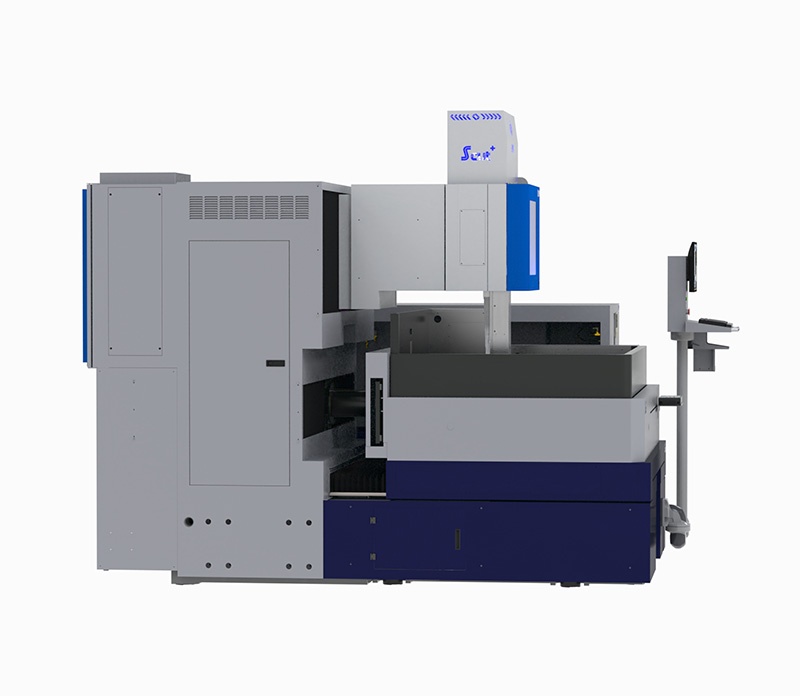

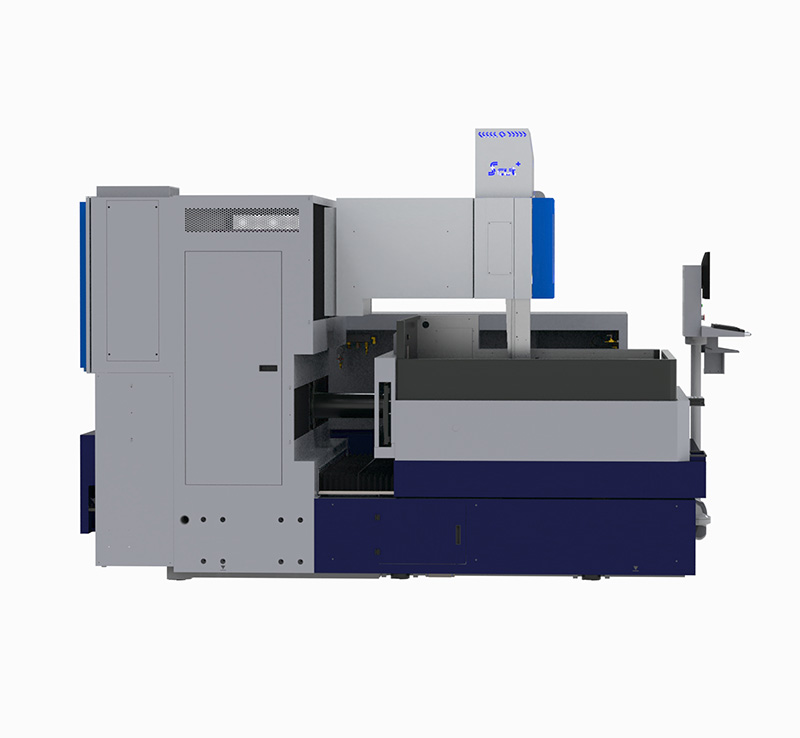

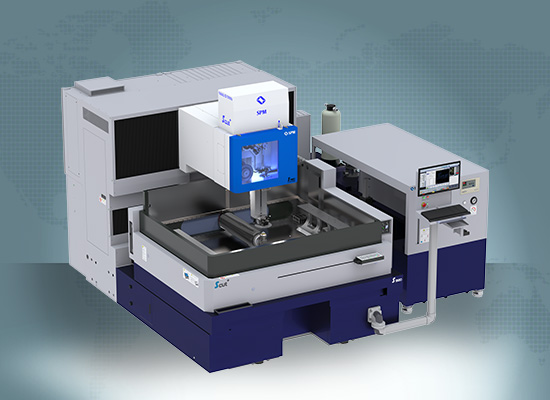

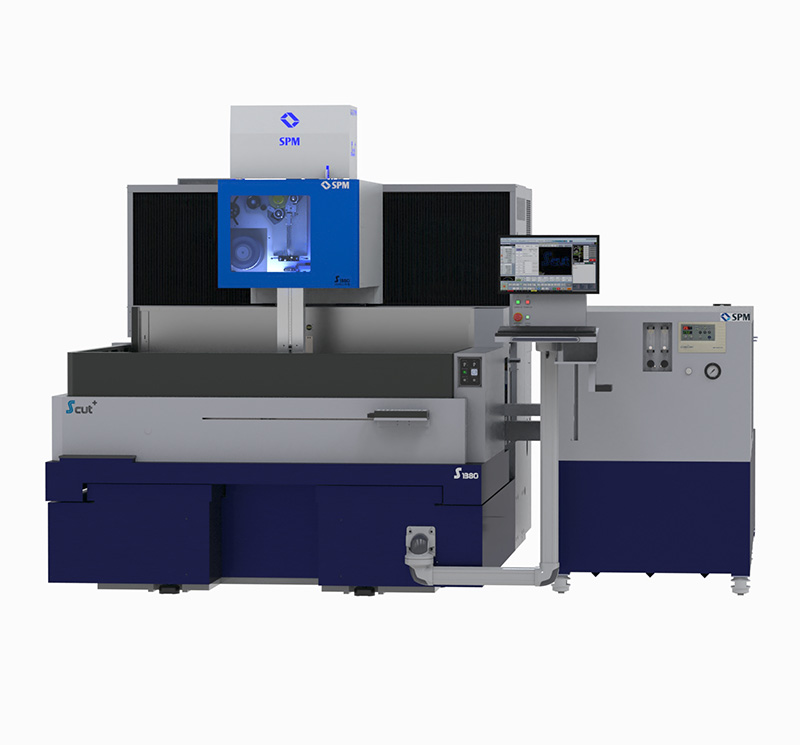

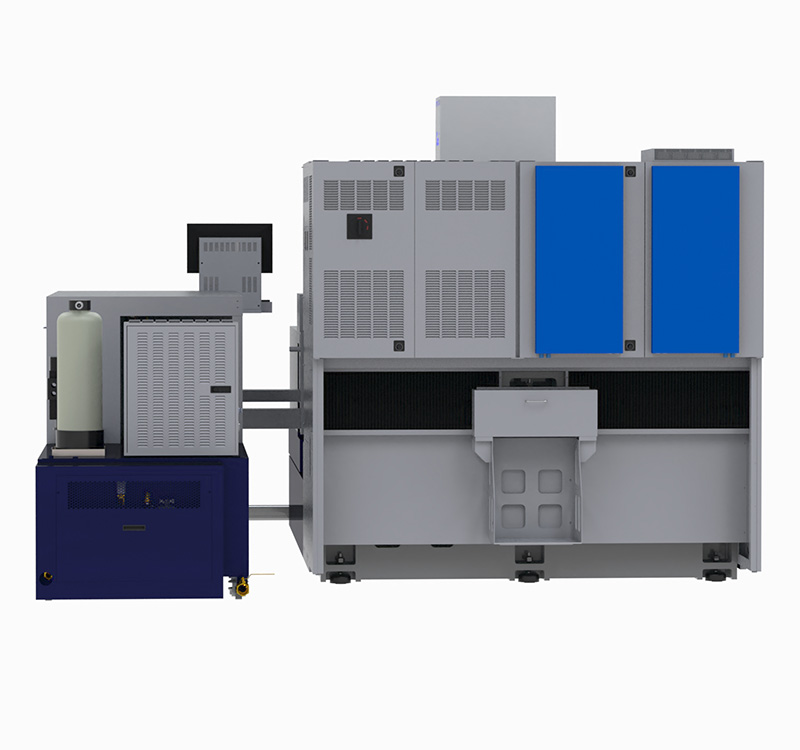

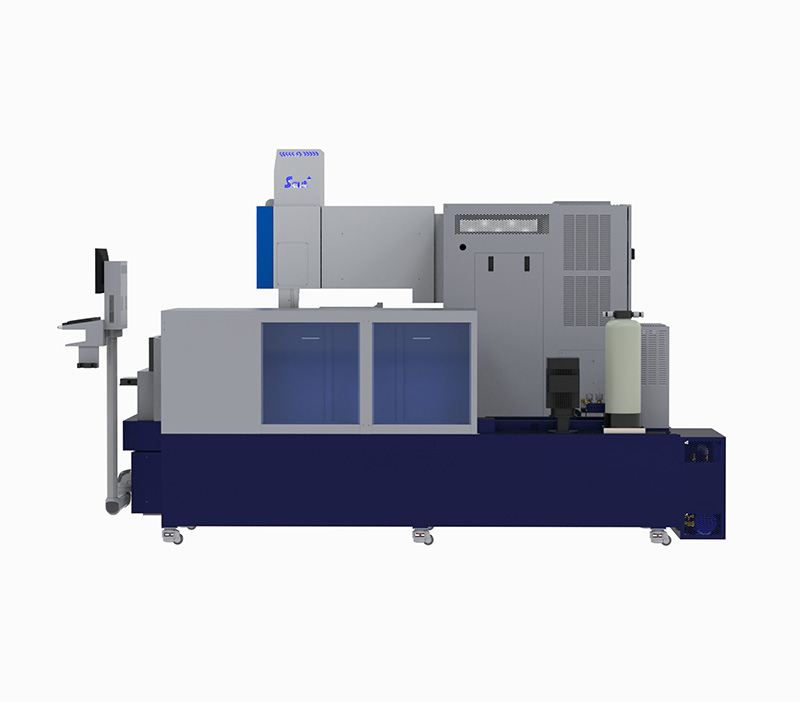

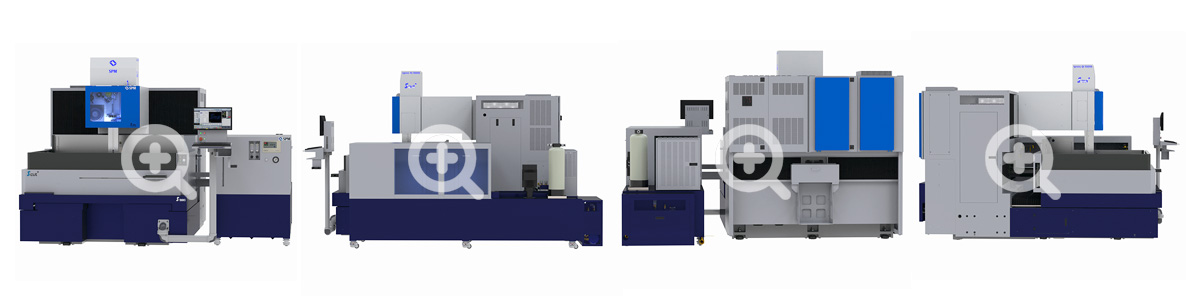

◎ S1380


RANGE OF MACHINING





CONTROL UNIT SPECIFICATION

Title Unit
X, Y, Z travel 1300 X 800 X 350 m
U, V travel 100 X 100 (± 50) mm
Work tank dimensions 1824 X 1394 mm
Maximum workpiece dimensions 1600 X 1000 X 340 mm
Common workpiece dimensions F:1500 X 900 X 330 / S:1500 X 900 X 120 mm
Maximum workpiece weight 3500 kg

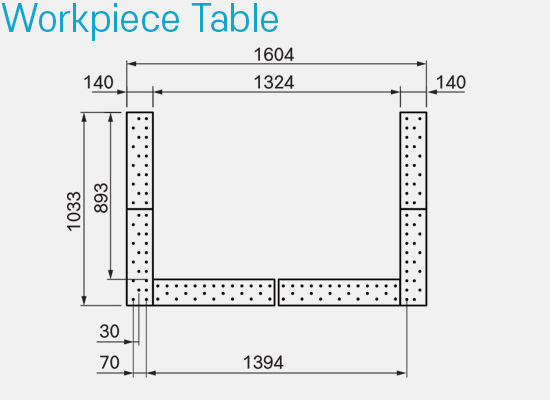

Table dimension 1604 X 1033 mm
Table height (from floor) 980 mm
Title Unit
Maximum taper angle ±24/100mm Degrees/t
Table rapid feed speed 1300 mm
Wire diameter 0.15 ~ 0.3 mm
Wire feed speed 0 ~ 15 m/min
Wire tension 0.5 ~ 28 N

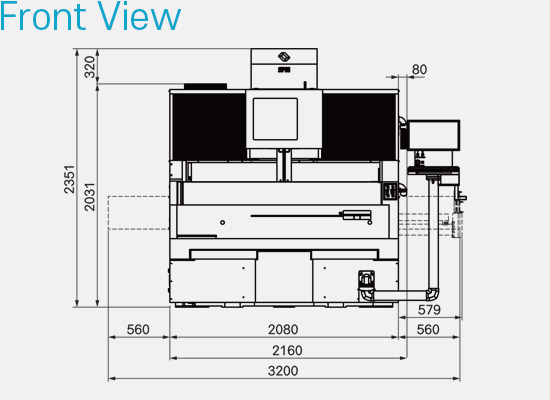

Machine dimension (WLH) 2160 X 4180 X 2031 mm
Machine unit weight 7600 kg

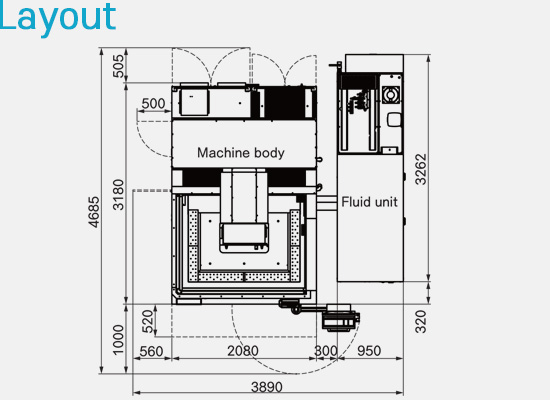

Standard layout 3890 X 4685 X 2351 mm
X,Y,Z Linear scale standard (U,V option) /Option : Outer mounted bobbin

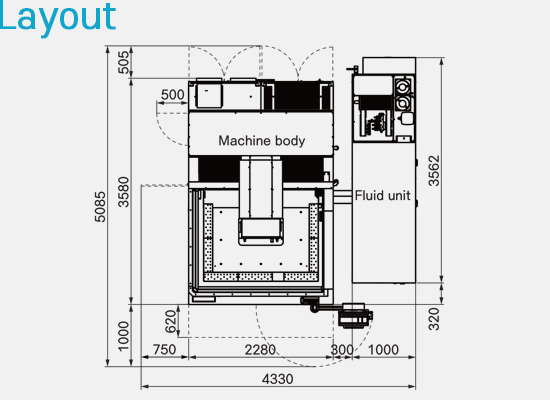

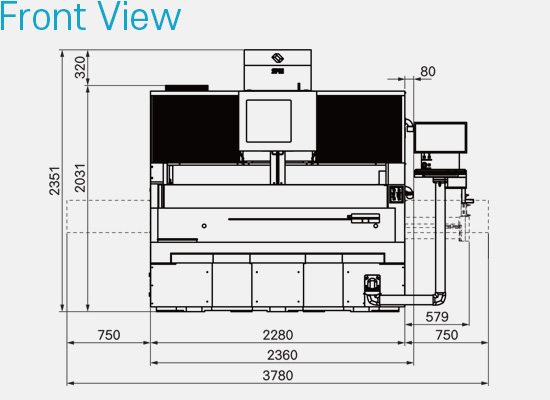

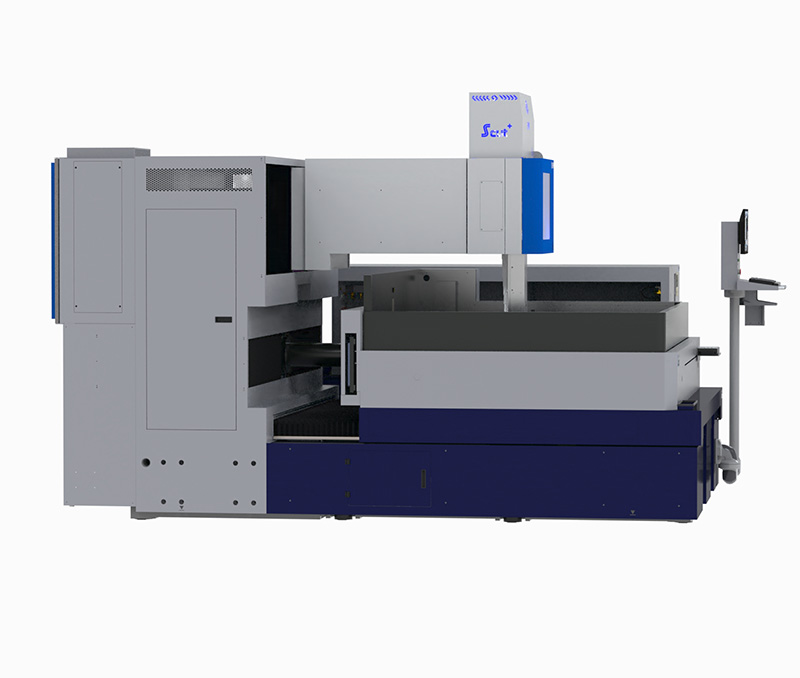

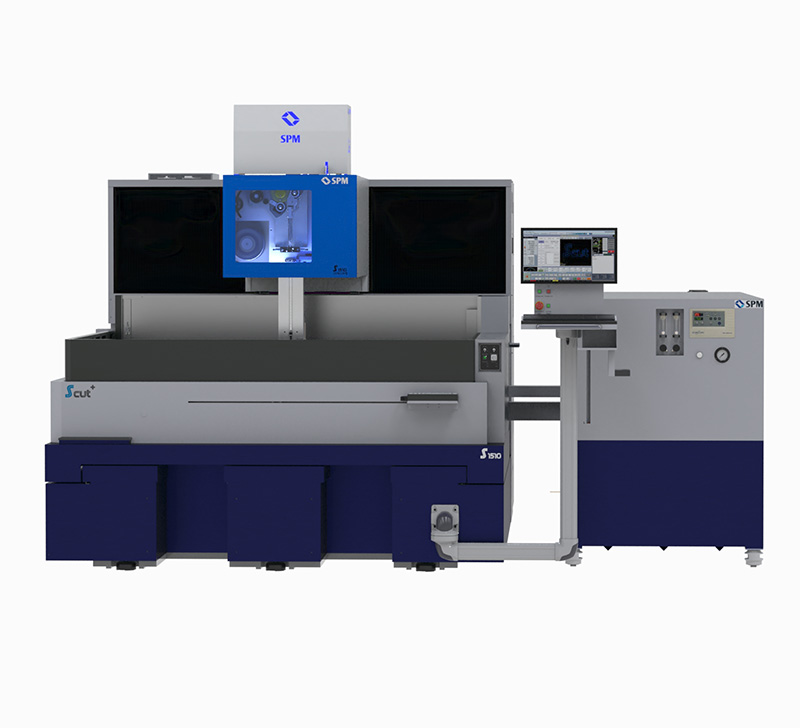

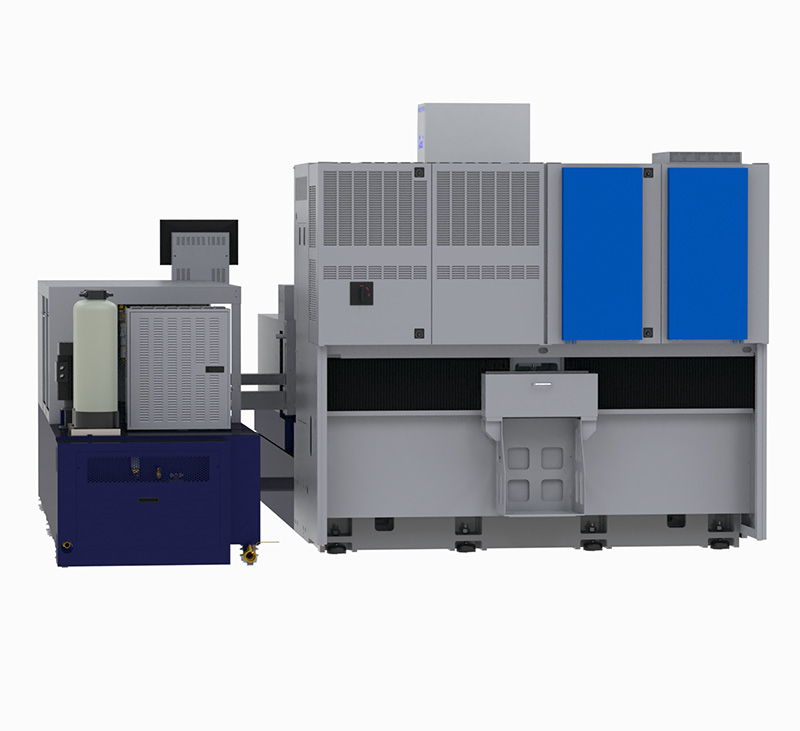

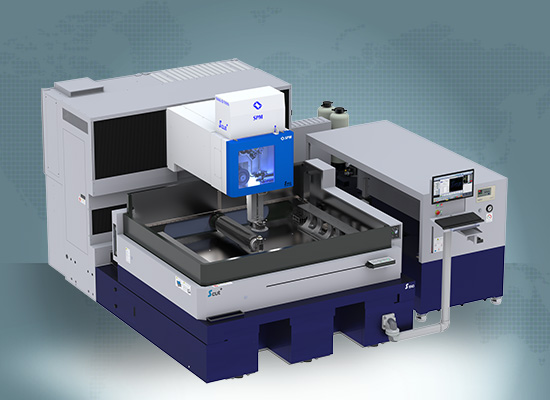

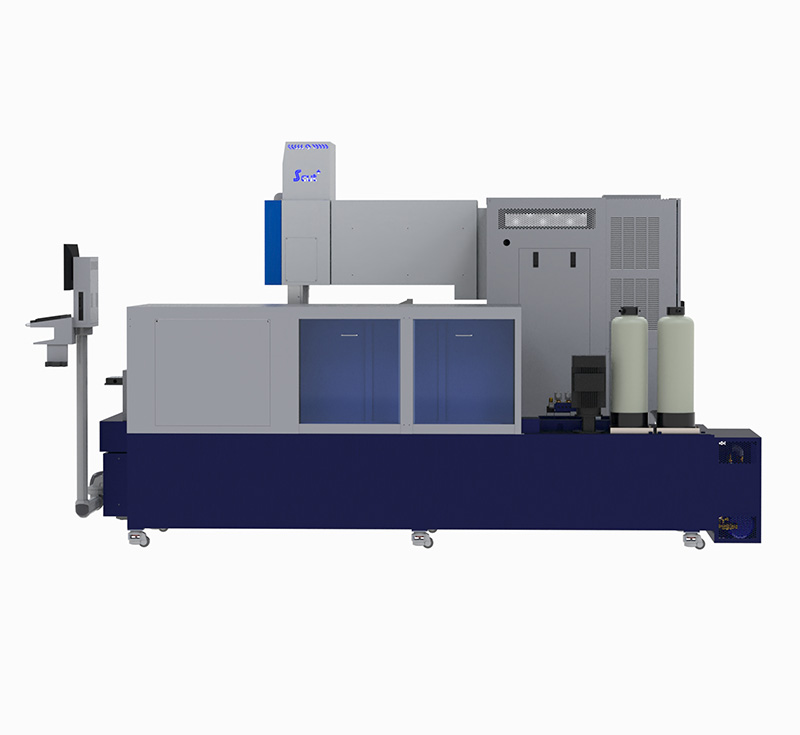

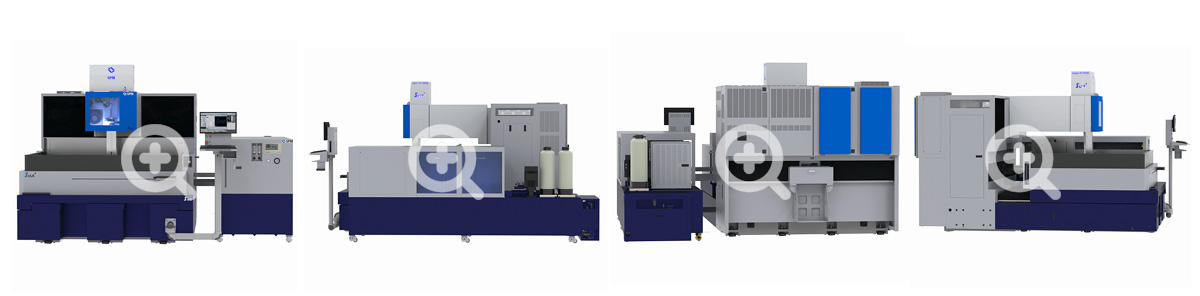

◎ S1510




RANGE OF MACHINING





CONTROL UNIT SPECIFICATION

Title Unit
X, Y, Z travel 1500 X 1000 X 350 mm
U, V travel 100 X 100 (± 50) mm
Work tank dimensions 2024 X 1594 mm
Maximum workpiece dimensions 1800 X 1200 X 340 mm
Common workpiece dimensions F:1700 X 1100 X 330 / S:1700 X 1100 X 120 mm
Maximum workpiece weight 4800 kg

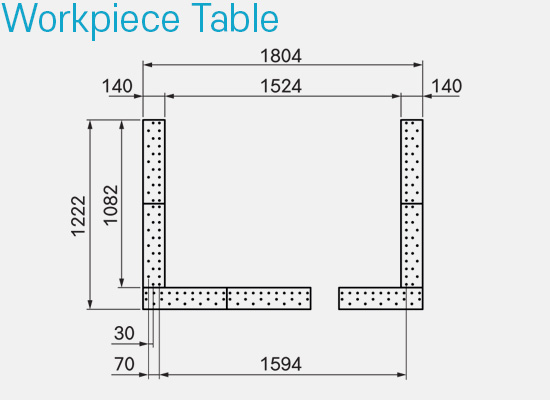

Table dimension 1804 X 1222 mm
Table height (from floor) 980 mm
Title Unit
Maximum taper angle ±24/100mm Degrees/t
Table rapid feed speed 1300 mm
Wire diameter 0.15 ~ 0.3 mm
Wire feed speed 0 ~ 15 m/min
Wire tension 0.5 ~ 28 N
Machine dimension (WLH) 2360 X 4580 X 2031 mm
Machine unit weight 9000 kg
Standard layout 4330 X 5085 X 2351 mm
X,Y, Z Linear scale standard (U,V option) /Option : Outer mounted bobbin
